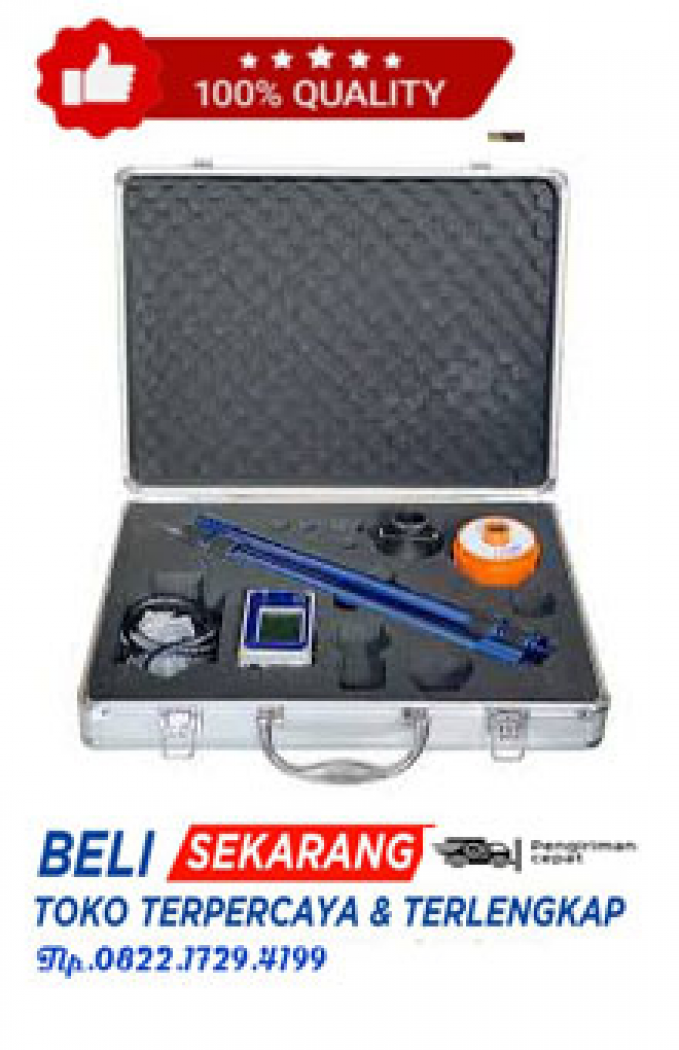

HAGLOF Vertex V Hypsometer Package

HAGLOF Vertex V Hypsometer Package

Features HAGLOF Vertex 5
- Measure Distance up to 30 meters or 100 feet with a resolution of 0,01 m or 0,1 feet even in dense vegetation, and with an accuracy of +-1% or better if calibrated
- Measure Heights up to 999 meters or 3277 feet with a resolution of 0.1m/0.1 ft
- Measure Angles in Degrees 360°, Grads 400° or percent % with a resolution of 0.1°
- 5000 data sets can be stored in the built-in memory and saved as a CSV file
- Bluetooth® 4.0 (BLE) can be used to transfer data wirelessly to devices with Android, iOS, or Windows
- (BAF) Basal Area Function to determine the minimum diameter DBH that a tree most have, on sample point to be counted
- Multilanguage, select your preferred language

Specification HAGLOF Vertex V Hypsometer Package
- Size : 80x54x31mm (3,14”x2,12”x1,22”)
- Weight : 173 g (6.10 oz.)(incl. battery)
- Battery: 1 x 1,5 AA alkaline,
- Current 20mA with Bluetooth 150mA
- Temperature : -20° to +45°C / ‐4°F to 113°F
- Wireless interface : IR, Bluetooth® BLE
- Memory : Storage 5000 data sets.
- Signal : Built-in loud speaker
- Ultra sonic frequency : 25 kHz
- Height : 999 m (3277 ft.). Resolution: 0.1 m/ 0.1 ft
- Angle : -90° to +90° deg./ ‐100° to +100° grads, Resolution: 0.1˚
- Distance : 30 m / 100 ft. With 360° adapter 20 m / 60 ft .
- Resolution: 0.01 m/ 0.1 ft Accuracy: 1%
- BAF factors : 0.5, 1 to 9 (m2/ha) or 5, 10, 15..to 50 (ft2/acre)
- Languages settings : Czech, Danish, English, Estonian, Finnish, French, German, Italian, Latvian,
Lithuanian, Norwegian, Polish, Portuguese, Russian, Spanish and Swedish.

Transponder T4
- Size : Diameter 70 mm/2,8”
- Weight : 85 g/5 oz (Incl. Battery).
- Battery : 1 ea AA 1.5V alkaline battery necessary for T3
- Power consumption : 9mW
